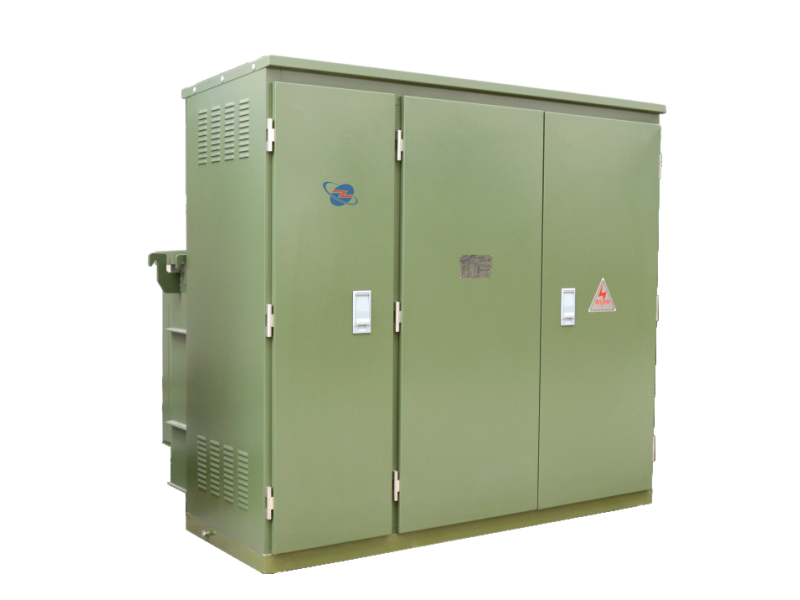

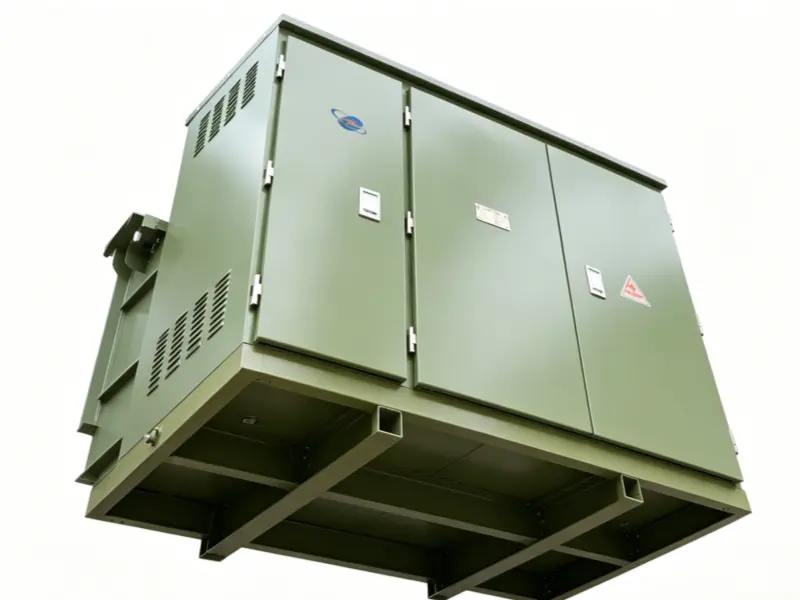

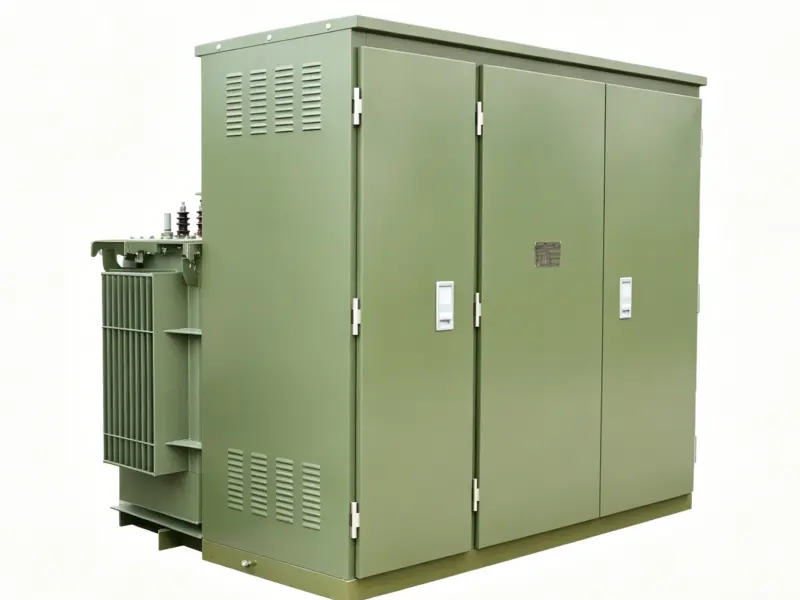

Pad Mounted Transformer
Rated Voltage: 3.6/7.2/12/24/36kV
Rated Peak Withstand Current: 40–125kA (Varies by different voltage specifications)
Circuit Breaker Rated Current: 630, 1250, 1600, 2000, 2500, 3150, 4000A
Customization available regardless of voltage level
Introduction
Pad-mounted transformers are the ideal choice for underground power distribution in the United States, fully engineered and tested to comply with ANSI C57.12.00 and IEEE standards. These units are designed for direct burial or concrete pad installation, offering a compact, tamper-resistant solution that blends seamlessly into residential, commercial, and industrial environments.

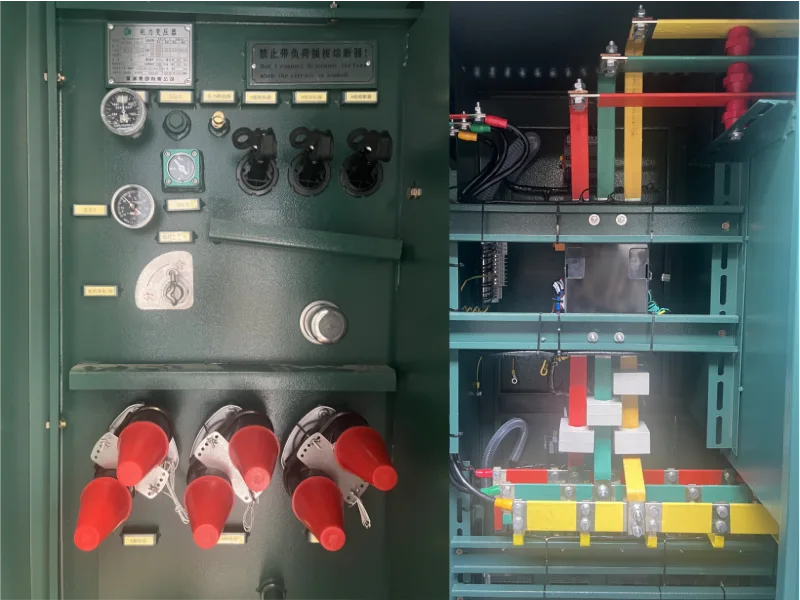

Built with corrosion-resistant, weatherproof steel enclosures, our pad-mounted transformers feature a robust design that withstands harsh outdoor conditions, including extreme temperatures, heavy rain, and coastal salt fog. The low-profile, dead-front construction ensures maximum safety for utility workers and the public, while the integrated load-break elbows and switchgear simplify installation and maintenance.
Using high-grade silicon steel cores and copper windings, these transformers deliver low no-load loss, high efficiency, and reliable performance with minimal noise. We offer a full range of voltage ratings (15kV, 25kV, 35kV primary) and kVA capacities, with customizable options for secondary voltage, tap changers, and accessories to meet the specific needs of U.S. utility companies, electrical contractors, and developers.
Ideal for use in residential subdivisions, shopping centers, hospitals, schools, and industrial parks, our pad-mounted transformers provide long service life, low operating costs, and consistent power delivery for all underground distribution applications across the United States.
